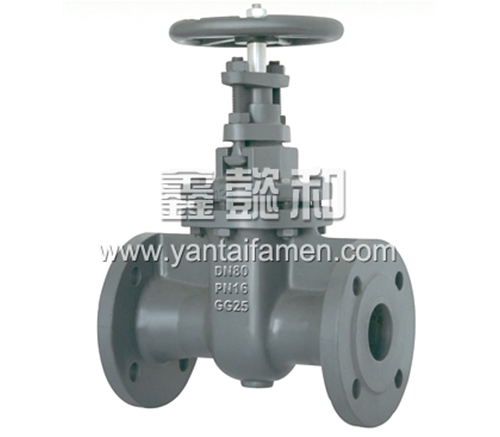

FLANGE END NON-RISING STEM GATE VALVE
Scope of Application
| NORMINAL PRESSURE |
1.6MPa |
|
|
SUITABLE MEDIUM |
WATER, OIL,STEAM |
|
|
TEST PRESSURE |
intensity |
2.4MPa |
|
sealed |
1.76MPa |
|
|
Highest temperature |
-10—150°C |
|
Technical requirement
- Design, manufacture conforms to DIN 3352.
- Face to face dimension conforms to Series 15 of BS EN 558-1.
-
Flange drilled conforms to BS EN 1092。
|

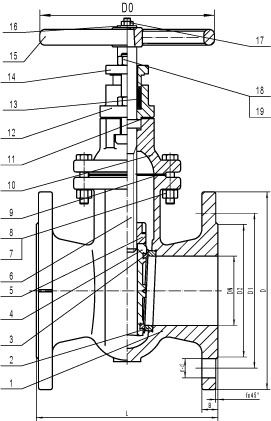

DN |
L |
D |
D1 |
D2 |
DO |
B |
f |
n-d |
|
40 |
240 |
150 |
110 |
88 |
160 |
18 |
3 |
4-19 |
|
50 |
250 |
165 |
125 |
102 |
160 |
20 |
3 |
4-19 |
|
65 |
270 |
185 |
145 |
122 |
160 |
20 |
3 |
4-19 |
|
80 |
280 |
200 |
160 |
138 |
160 |
22 |
3 |
8-19 |
|
100 |
300 |
220 |
180 |
158 |
200 |
24 |
3 |
8-19 |
|
125 |
325 |
250 |
210 |
188 |
250 |
26 |
3 |
8-19 |
|
150 |
350 |
285 |
240 |
212 |
250 |
26 |
3 |
8-23 |
|
200 |
400 |
340 |
295 |
268 |
250 |
30 |
3 |
12-23 |
|
250 |
450 |
405 |
355 |
320 |
320 |
32 |
3 |
12-28 |
|
300 |
500 |
460 |
410 |
378 |
320 |
32 |
4 |
12-28 |
|
350 |
550 |
520 |
470 |
438 |
400 |
36 |
4 |
16-28 |
|
400 |
600 |
580 |
525 |
490 |
400 |
36 |
4 |
16-31 |
|
19 |
nut |
steel |
DIN17100 RSt37-2 |
GB700-88 Q235 |
|
18 |
washer |
steel |
DIN17100 RSt37-2 |
GB700-88 Q235 |
|
17 |
handwheel |
cast iron |
DIN1691 GG25 |
GB9439-88 HT250 |
|
16 |
nut |
steel |
DIN17100 RSt37-2 |
GB700-88 Q235 |
|
15 |
gland follower |
cast iron |
DIN1691 GG25 |
GB9439-88 HT250 |
|
14 |
packing |
graphite |
|
GB3518-83 LC35-999 |
|
13 |
stuffing box |
cast iron |
DIN1691 GG25 |
GB9439-88 HT250 |
|
12 |
gasket |
graphite |
|
GB3518-83 LC35-999 |
|
11 |
T-bolt |
steel |
DIN17100 RSt37-2 |
GB700-88 Q235 |
|
10 |
bonnet |
cast iron |
DIN1691 GG25 |
GB9439-88 HT250 |
|
9 |
gasket |
graphite |
|
GB3518-83 LC35-999 |
|
8 |
nut |
steel |
DIN17100 RSt37-2 |
GB700-88 Q235 |
|
7 |
bolt |
steel |
DIN17100 RSt37-2 |
GB700-88 Q235 |
|
6 |
stem |
steel |
DIN17440 X20Cr13 |
GB1220-92 2Cr13 |
|
5 |
stem nut |
cast brass |
|
GB1176-87 ZCuZn38Mn2Pb2 |
|
4 |
wedge |
cast iron |
DIN1691 GG25 |
GB9439-88 HT250 |
|
3 |
wedge seat ring |
cast brass |
DIN17656 G-CuZn37Pb |
GB1176-87 ZCuZn40Pb2 |
|
2 |
body seat ring |
cast brass |
DIN17656 G-CuZn37Pb |
GB1176-87 ZCuZn40Pb2 |
|
1 |
body |
cast iron |
DIN1691 GG25 |
GB9439-88 HT250 |
|
NO. |
name of part |
material |
German Standard |
Chinese Standard |
