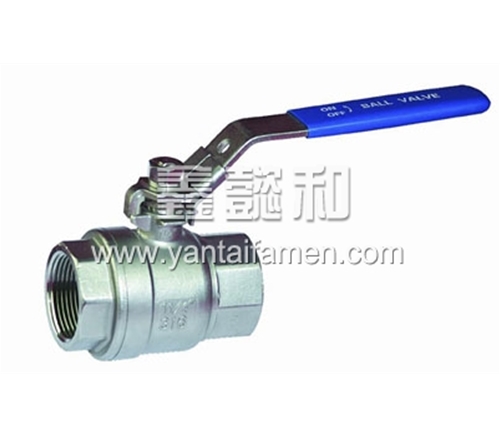

Ball valve
Name：V-2 两片式内外螺纹球阀
Details
Full bore
Threaded ends: ANSI B2, 1, BS 21, DIN259/2999, JIS 130202/130203
Quality investment casting body and cap
Internal entry biow-out proof stem
Material: CF8M, CF8, CF3M. WCB
Pressure rating: 1000PSI WOG
Pressure test: API 598
Lever handle with locking device
|

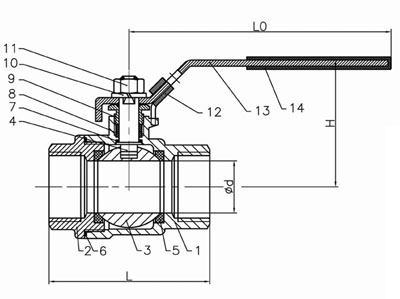

Item
|
Drawing no.
|
Name
|
Material
|
QTY
|
|
1
|
V2-0001
|
Body
|
CF8M
|
1
|
|
2
|
V2-0002
|
Cap
|
CF8M
|
1
|
|
3
|
V2-0003
|
Ball
|
CF8M
|
1
|
|
4
|
V2-0004
|
Stem
|
316
|
1
|
|
5
|
V2-0005
|
Seat
|
PTFE+3%GF
|
2
|
|
6
|
V2-0006
|
Gasket
|
PTFE
|
1
|
|
7
|
V2-0007
|
Thrust washer
|
PTFE
|
1
|
|
8
|
V2-0008
|
Stem packing
|
PTFE
|
2
|
|
9
|
V2-0009
|
Gland
|
304
|
1
|
|
10
|
V2-0010
|
Spring washer
|
304
|
1
|
|
11
|
V2-0011
|
Nut
|
304
|
1
|
|
12
|
V2-0012
|
Stopper
|
304
|
1
|
|
13
|
V2-0013
|
Handle
|
304
|
1
|
|
14
|
V2-0014
|
Handle sleeve
|
|
1
|
|
|
1/4
|
3/8
|
1/2
|
3/4
|
1
|
1-1/4
|
1-1/2
|
2
|
2-1/2
|
3
|
|
Фd
|
11.6
|
11.6
|
15
|
20
|
25
|
32
|
38
|
50
|
65
|
80
|
|
L
|
46.8
|
48.5
|
58
|
65.7
|
77
|
90
|
98
|
121
|
145
|
166
|
|
L0
|
101.5
|
101.5
|
101.5
|
124
|
124
|
152
|
152
|
190
|
242
|
242
|
|
H
|
48
|
48
|
52
|
61
|
65
|
79
|
83
|
97
|
135
|
144
|
