Ball valve

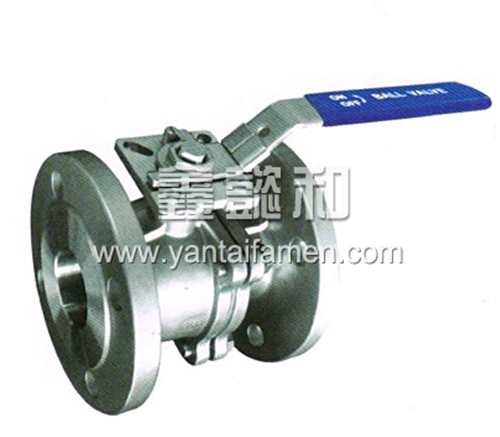

Name：2-PC FLANGE BALL VALVE, FULL BORE, PN16, WITH ISO5211
Details
Investment Castings For Body And Cap
Flange Ends: DN15-DN50(PN16/25/40): DIN 2543/2544/2545 DN65-DN100(PN16): DIN2543
Face To Face: DIN3202-F4
Pressure Rating: PN16 PH40
Material: CF8M，CF8，CF3M，WCB
Mounting Pad: ISO 5211
Pressure Test: API 598
MATERIAL LIST：
|
ITEM
|
PART
|
MATERIAL
|
QTY
|
|
1
|
BODY
|
CF8M
|
1
|
|
2
|
CAP
|
CF8M
|
1
|
|
3
|
BALL
|
316
|
1
|
|
4
|
BALL SEAT
|
PTFE
|
2
|
|
5
|
STEM
|
SS316
|
1
|
|
6
|
THRUST WASHER
|
PTFE
|
1
|
|
7
|
O-RING
|
VITON
|
1
|
|
8
|
STEM PACKING
|
PTFE
|
2
|
|
9
|
GLANG
|
304
|
1
|
|
10
|
WASHER
|
301
|
2
|
|
11
|
NUT
|
304
|
2
|
|
12
|
WASHER
|
304
|
1
|
|
13
|
STOP PIN
|
304
|
1
|
|
14
|
HANDLE
|
304
|
1
|
|
15
|
HANDLE COVER
|
PLASTIC
|
1
|
|
16
|
LOCKING
|
304
|
1
|
|
17
|
BODY GASKET
|
PTFE
|
1
|
|
18
|
BOLT
|
304
|
(4)(6)(8)
|

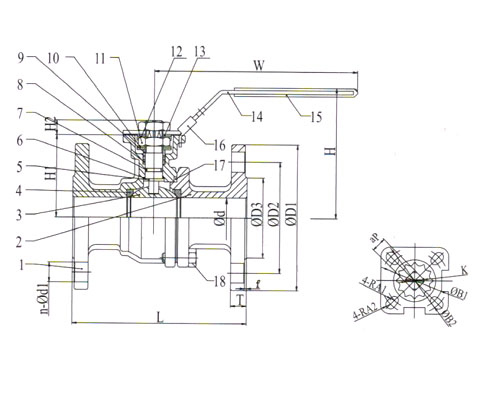

DIMENSION TABLE：
|
SIZE
|
d
|
L
|
T
|
f
|
D1
|
D2
|
D3
|
n-d1
|
H1
|
H
|
W
|
aP
|
ISO5211
|
N.M
|
KGS
|
|
1/2"
|
15
|
115
|
16
|
2
|
95
|
65
|
45
|
4-14
|
48
|
82
|
120
|
9
|
F03/F04
|
5
|
2.91
|
|
3/4"
|
20
|
120
|
18
|
2
|
105
|
75
|
58
|
4-14
|
53
|
87
|
120
|
9
|
F03/F04
|
8
|
3.38
|
|
1"
|
25
|
125
|
18
|
2
|
115
|
85
|
68
|
4-14
|
58.5
|
90
|
160
|
11
|
F04/F05
|
10
|
3.73
|
|
1-1/4"
|
32
|
130
|
18
|
2
|
140
|
100
|
78
|
4-18
|
71
|
100
|
160
|
11
|
F04/F05
|
14
|
4.95
|
|
1-1/2"
|
40
|
140
|
18
|
3
|
150
|
110
|
88
|
4-18
|
76.5
|
105
|
200
|
14
|
F05/F07
|
18
|
6.10
|
|
2"
|
50
|
150
|
20
|
3
|
165
|
125
|
102
|
4-18
|
85
|
125
|
200
|
14
|
F05/F07
|
25
|
8.90
|
|
2-1/2"
|
65
|
170
|
18
|
3
|
185
|
145
|
122
|
4-18
|
100
|
142
|
255
|
17
|
F07/F10
|
48
|
12.80
|
|
3"
|
80
|
180
|
20
|
3
|
200
|
160
|
138
|
8-18
|
112.5
|
155
|
255
|
17
|
F07/F10
|
75
|
18.90
|
|
4"
|
100
|
190
|
20
|
3
|
220
|
180
|
158
|
8-18
|
125.5
|
168
|
300
|
17
|
F07/F10
|
110
|
26.60
|
