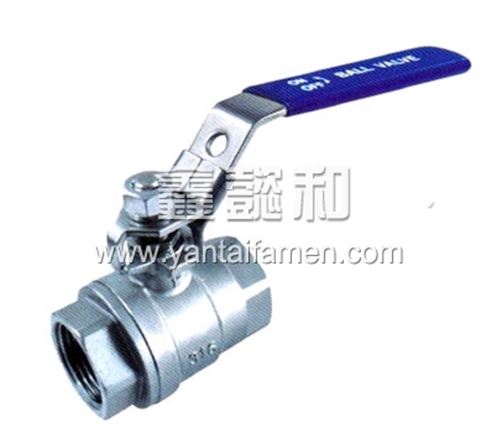

名称：V-2N二片式不锈钢球阀
详细信息
精密铸造二片式球阀（通径，轻型）
压力等级：1000PSI(PN63)
螺纹标准：ANSI B2.1，BS 21， DIN 259/2999
材料：CF8M，CF8，CF3M，WCB
压力测试：API 598
|

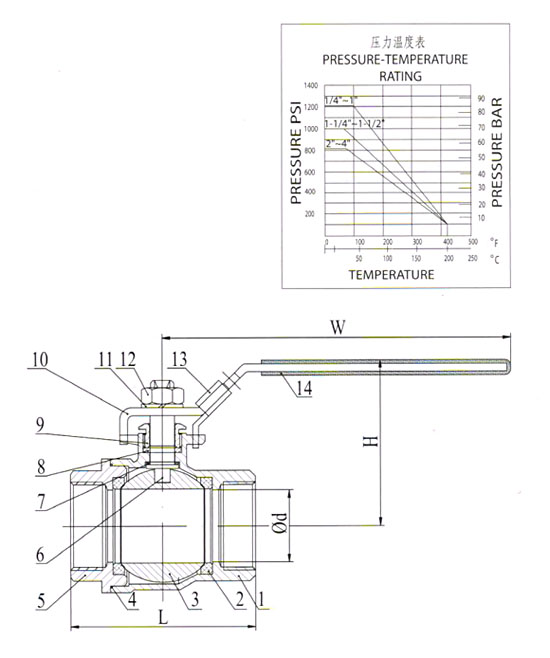

ITEM
|
PART
|
MATERIAL
|
QTY
|
|
1
|
BODY
|
CF8M
|
1
|
|
2
|
BALL SEAT
|
PTFE
|
2
|
|
3
|
BALL
|
CF8M
|
1
|
|
4
|
BODY GASKET
|
PTFE
|
1
|
|
5
|
CAP
|
CF8M
|
1
|
|
6
|
STEM
|
SS316
|
1
|
|
7
|
THRUST WASHER
|
PTFE
|
1
|
|
8
|
STEM PACKING
|
PTFE
|
2
|
|
9
|
GLAND NUT
|
SS304
|
1
|
|
10
|
HANDLE
|
SS304
|
1
|
|
11
|
WASHER
|
SS304
|
1
|
|
12
|
NUT
|
SS304
|
1
|
|
13
|
LOCK DEVICE
|
SS304
|
1
|
|
14
|
HANDLE COVER
|
PLASTIC
|
1
|
|
SIZE
|
d
|
L
|
H
|
W
|
N.M
|
KGS
|
|
1/2"
|
15
|
53
|
51
|
104
|
5
|
0.24
|
|
3/4"
|
20
|
65
|
58
|
116
|
8
|
0.36
|
|
1"
|
25
|
73
|
73
|
148
|
10
|
0.58
|
|
1-1/4"
|
32
|
85
|
79
|
148
|
14
|
0.90
|
|
1-1/2"
|
38
|
94
|
85
|
182
|
25
|
1.20
|
|
2"
|
50
|
112
|
95
|
182
|
40
|
1.73
|
