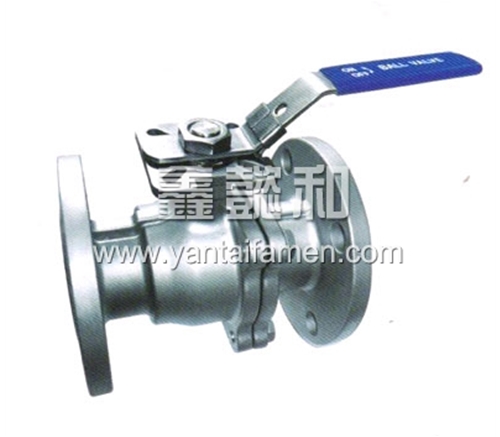

名称：V-2F(150LB)美标二片式高平台法兰球阀（通径）
详细信息
法兰标准：ASME B16.5
结构长度：ANSI 16.10
压力等级：ANSI CLASS 150
材料：CF8M，CF8，CF3M，WCB
高平台：ISO 5211
压力测试：API 598
|

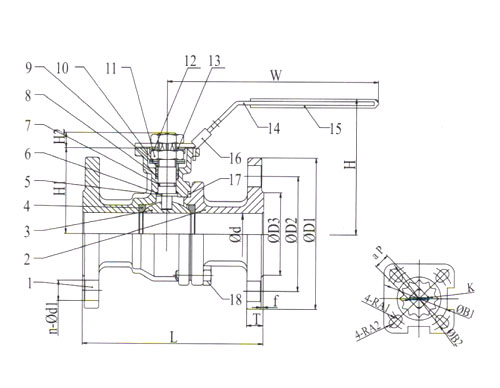

ITEM
|
PART
|
MATERIAL
|
QTY3
|
|
1
|
BODY
|
CF8M
|
1
|
|
2
|
CAP
|
CF8M
|
1
|
|
3
|
BALL
|
316
|
1
|
|
4
|
BALL SEAT
|
PTFE
|
2
|
|
5
|
STEM
|
SS316
|
1
|
|
6
|
THRUST WASHER
|
PTFE
|
1
|
|
7
|
O-RING
|
VITON
|
1
|
|
8
|
STEM PACKING
|
PTFE
|
2
|
|
9
|
GLANG
|
304
|
1
|
|
10
|
WASHER
|
301
|
2
|
|
11
|
NUT
|
304
|
2
|
|
12
|
WASHER
|
304
|
1
|
|
13
|
STOP PIN
|
304
|
1
|
|
14
|
HANDLE
|
304
|
1
|
|
15
|
HANDLE COVER
|
PLASTIC
|
1
|
|
16
|
LOCJG
|
304
|
1
|
|
17
|
BODY GASKET
|
PTFE
|
1
|
|
18
|
BOLT
|
304
|
(4)(6)(8)
|
|
SIZE
|
d
|
L
|
T
|
f
|
D1
|
D2
|
D3
|
n-d1
|
H1
|
H
|
W
|
aP
|
ISO5211
|
N.M
|
KGS
|
|
1/2"
|
15
|
108
|
10
|
1.6
|
89
|
61
|
35
|
4-16
|
48
|
80
|
140
|
9
|
F03/F04
|
6
|
1.51
|
|
3/4"
|
20
|
117
|
11
|
1.6
|
99
|
70
|
43
|
4-16
|
53
|
85
|
140
|
9
|
F03/F04
|
10
|
1.99
|
|
1"
|
25
|
127
|
11
|
1.6
|
108
|
79
|
51
|
4-16
|
59
|
95
|
160
|
11
|
F04/F05
|
12
|
2.82
|
|
1-1/4"
|
32
|
140
|
13
|
1.6
|
117
|
89
|
64
|
4-16
|
71
|
108
|
160
|
11
|
F04/F05
|
17
|
3.89
|
|
1-1/2"
|
38
|
165
|
15
|
2
|
125
|
98
|
73
|
4-16
|
76
|
114
|
185
|
14
|
F05/F07
|
30
|
5.05
|
|
2"
|
50
|
178
|
16
|
2
|
150
|
121
|
92
|
4-19
|
85
|
124
|
185
|
14
|
F05/F07
|
48
|
7.15
|
|
2-1/2"
|
65
|
190
|
18
|
2
|
180
|
140
|
105
|
4-19
|
102
|
148
|
230
|
17
|
F07/F10
|
58
|
13.91
|
|
3"
|
76
|
203
|
20
|
2
|
190
|
152
|
127
|
4-19
|
112
|
158
|
230
|
17
|
F07/F10
|
96
|
15.90
|
|
4"
|
94
|
229
|
24
|
2
|
230
|
191
|
157
|
4-19
|
141
|
191
|
230
|
17
|
F07/F10
|
124
|
26.
|
